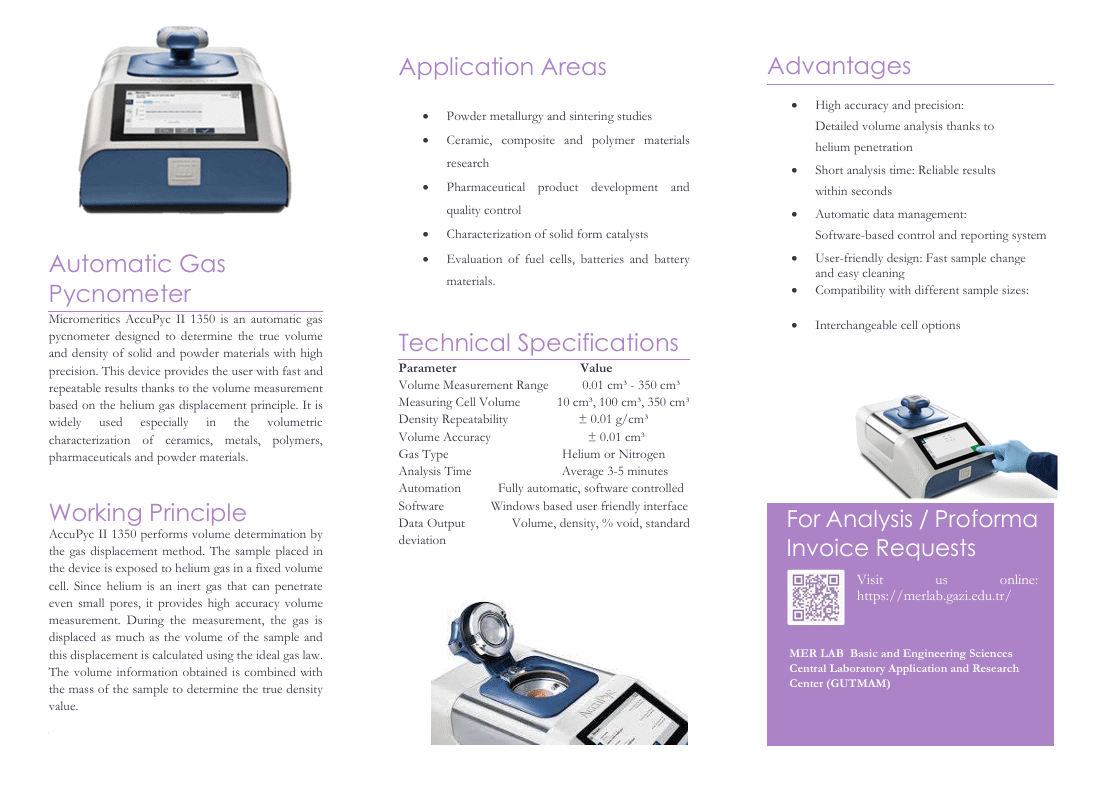

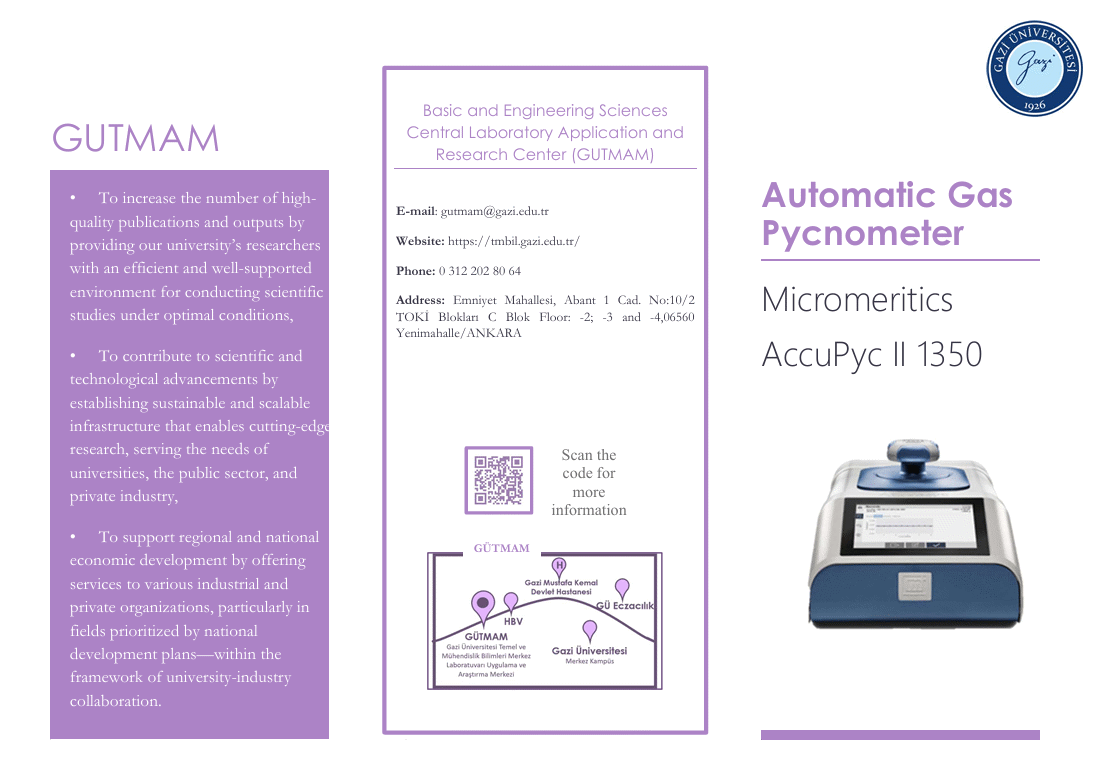

AccuPyc 1350 Automatic Density Meter

The Micromeritics AccuPyc II 1345 is an automatic gas pycnometer designed to determine the true volume and density of solid and powder materials with high accuracy. Thanks to its helium gas displacement principle, this device provides the user with fast and repeatable results. It is widely used, particularly in the volumetric characterization of ceramics, metals, polymers, pharmaceuticals, and powder materials.

Application Areas

Powder metallurgy and sintering studies

Research on ceramic, composite, and polymer materials

Pharmaceutical product development and quality control

Characterization of solid-form catalysts

Evaluation of fuel cells, batteries, and battery materials

Parameter Value

Volume Measurement Range: 0.01 cm³ - 350 cm³

Measurement Cell Volume: 10 cm³, 100 cm³, 350 cm³

Density Repeatability: +0.01 g/cm³

Volume Accuracy: ±0.01 cm³

Gas Type: Helium or Nitroge

Analysis Time: Average 3-5 minutes

Automation: Fully automatic, software controlled

Software: Windows-based user-friendly interface

Data Output: Volume, density, % void space, standard deviation

Working Principle

The AccuPyc II 1345 determines volume using the gas displacement method. The sample placed in the instrument is exposed to helium gas in a constant volume cell. Since helium is an inert gas that can penetrate even small pores, it provides highly accurate volume measurements. During the measurement, an amount of gas equal to the volume of the sample is displaced, and this displacement is calculated using the ideal gas law. The obtained volume information is combined with the mass of the sample to determine the true density value.

Advantages

High accuracy and precision

Detailed volume analysis thanks to helium penetration

Short analysis time: Reliable results in seconds

Automatic data management: Software-based control and reporting system

User-friendly design: Quick sample change and easy cleaning

Compatibility with different sample sizes: Interchangeable cell options
